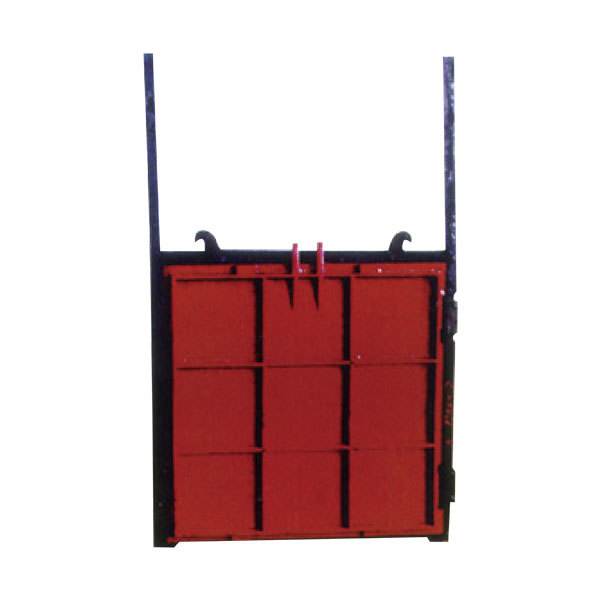

Open Bar Stainless Steel Square Gate

The equipment is composed of door frame, door panel, sealing ring, lifting lug and adjustable wedge and other components.

Category：

Gate Valve Series

Keywords：

Gate Valve Series

admin@jnwsjxzz.com

E-mail

+8613869176503

Technical Parameters

The gate should be installed according to the position shown, and the gate plate should be set on the surface of the water;

The maximum allowable pressure of gate plate pressing to door frame is 0.1Mpa;

The maximum allowable pressure of gate plate from door frame is 0.02MPa;

Leakage of sealing working parts is greater than 1.25L/min.m.

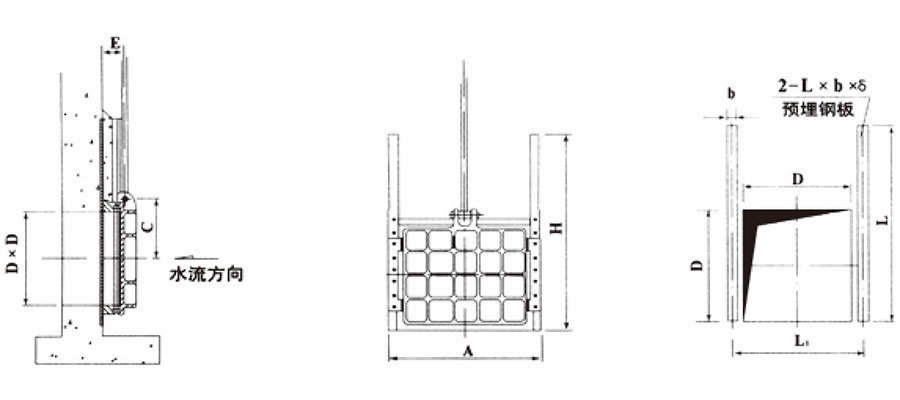

Installation Dimensions

MXF300-MXF1000

Model Specifications	Diameter	Appearance and Installation Dimensions
Model Specifications	D×D	A	b	C	E	H	L	L1	δ
MXF-300	300×300	456	150	200	83	580	580	456	12
MXF-400	400×400	556	150	250	83	680	680	556	12
MXF-500	500×500	656	150	310	83	780	780	656	12
MXF-600	600×600	790	150	360	123	900	900	790	12
MXF-700	700×700	940	150	420	135	1000	1000	940	12
MXF-800	800×800	1010	150	470	150	1200	1200	1010	12
MXF-1000	1000×1000	1210	150	580	163	1700	1700	1210	12

MXF1200-MXF2400

Model specifications	Caliber	Outline and installation dimensions
Model specifications	D×D	A	b	C	E	H	L	L1	δ
MXF-1200	1200×1200	1430	150	690	174	2000	2000	1430	12
MXF-1400	1400×1400	1630	150	800	174	2500	2500	1630	12
MXF-1600	1600×1600	1850	200	900	204	2800	2800	1850	12
MXF-1800	1800×1800	2050	200	1000	220	3200	3200	2050	12
MXF-2000	2000×2000	2270	200	1110	254	3700	3700	2270	12
MXF-2200	2200×2200	2480	200	1210	254	4100	4100	2480	12
MXF-2400	2400×2400	2660	200	1315	260	4500	4500	2660	12

MXF2600-MXF5000

Model specifications	Caliber	Outline and installation dimensions
Model specifications	D×D	A	b	C	E	H	L	L1	L2	δ
MXF-2600	2600×2600	2880	200	1410	280	4800	4880	2880	2600	12
MXF-2800	2800×2800	3080	200	1515	320	5200	5200	3080	2800	12
MXF-3000	3000×3000	3310	200	1620	320	5600	5600	3310	3000	16
MXF-3500	3500×3500	3820	200	1880	320	6500	6500	3820	3500	16
MXF-4000	4000×4000	4330	200	2130	360	7500	7500	4330	4000	16
MXF-4500	4500×4500	4830	200	2380	360	8500	8500	4830	4500	16
MXF-5000	5000×5000	5330	200	2650	360	9500	9500	5350	5000	16
