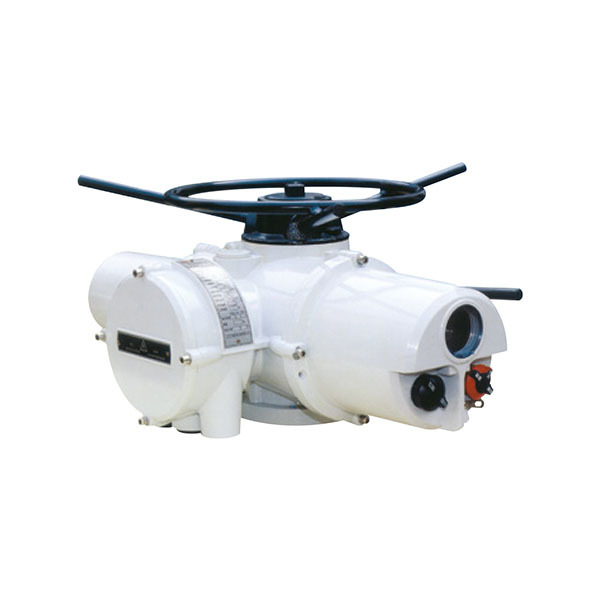

IK series intelligent electric actuator is a new generation of intelligent products. Advanced ultra-large scale digital integrated chip, professional digital torque sensor and digital displacement sensor, full Chinese menu operation and display, mechatronics structural design, resulting in its perfect function, excellent performance, lightweight and beautiful, simple debugging, convenient operation. It is matched with the valve to form an execution unit, which is used in the automatic control system of power station, petroleum, steel, chemical industry, oil pipeline, sewage treatment, etc., which can meet the requirements of frequent adjustment control and intermittent control. (Gate valve, globe valve, diaphragm valve, etc.).

The IKM series intelligent electric actuator is driven by three-phase servo motor, decelerated by worm gear and drives the output shaft to rotate. In the gearbox, a manual/automatic switching mechanism is provided. When the switch handle is in the manual position, the handwheel is operated and the output shaft is driven by the clutch. When the actuator is operated electrically, the manual/automatic switching mechanism automatically falls back, the clutch and worm gear engage, and the output shaft is driven by the three-phase motor. At the same time, a torque sensor is installed on the shaft of the motor driving worm. The travel is transmitted to the position sensor on the output shaft by engaging the bevel gear.

Technical Parameters

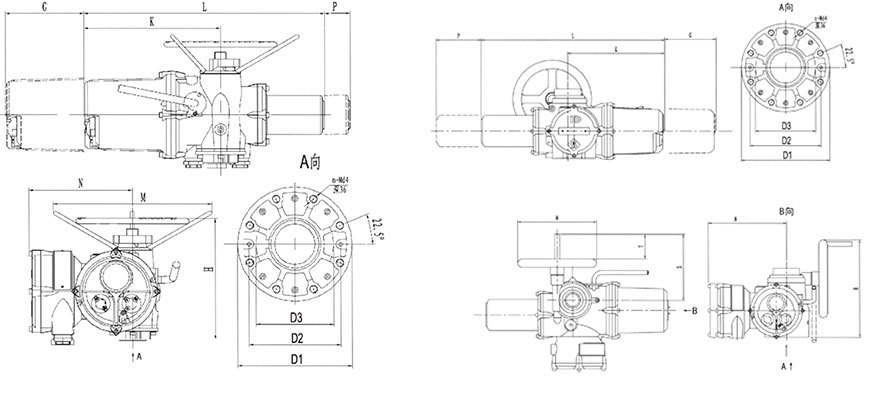

 IK, IKM 10 / 12 / 18 / 20 / 25 / 35 Multi-turn intelligent electric actuator (mm)

IK40 multi-turn intelligent electric actuator   (mm)

IK 70 / 90 / 91 / 95 Multi-turn Intelligent Electric Actuator (mm)
