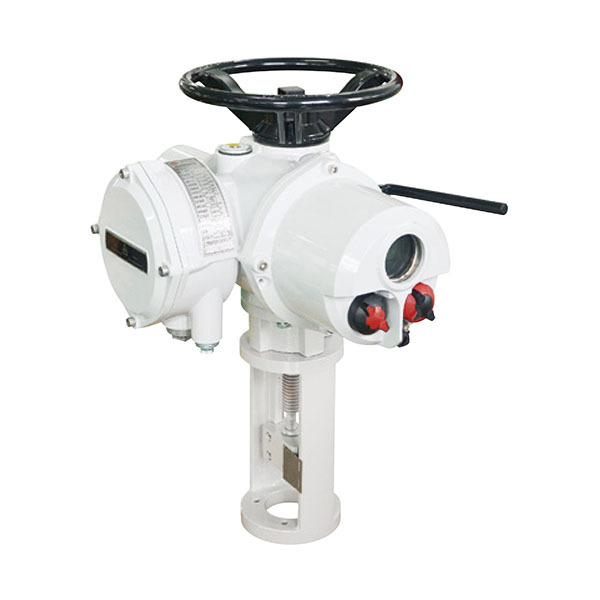

Intelligent electric actuator with direct stroke adjustment
Category：
Electric Actuator
Keywords：
Electric Actuator
Product Details
The intelligent controller of IKML direct stroke adjustable intelligent electric actuator accepts the standard analog current control signal or switch control signal, and compared with the position signal of the valve position sensor, locates the output shaft of the electric actuator in the position corresponding to the input signal to complete the positioning control.
It can also be positioned in the pre-set position of the control system according to the chain control, two-wire control or event signal, unless the torque value of the output shaft of the electric actuator is greater than the rated torque value or the set torque value during operation, the intelligent controller of the electric actuator will meet the requirements of the control system, issue the correct instruction, and trigger the three-phase solid-state relay. Make the motor connected to the three-phase power supply and the electric actuator run normally.
Technical Parameters
| Power supply | Power supply | 220V / 380V / 415V / 440V / 460V |
| Variable frequency voltage | 220v, 380V / 50Hz, 60Hz (please specify when ordering) | |
| Working environment | Ambient temperature | -25℃~+70℃ (flameproof type: -20℃~+60℃) |
| Relative humidity | 5％～98％（25℃) | |
| Atmospheric pressure | 86～106 kPa | |
| Air medium | No corrosive gas in the surrounding air | |
| Protection level | IP68 | |
| Explosion-proof mark | Remote control intrinsic safety type ibIIBT4 (intelligent electric device is explosion-proof type d IIBT4, d IICT4) | |
| Input signal | Analog signal | a, 4-20mA.DC input main resistance 250Ω b, 0-10mA.DC Input main resistance 250Ω |
| Switch signal | ||
| Output signal | Valve position feedback signal: 4-20mA.DC Load impedance ≤750Ω | |
| Output contact capacity | 220V.AC, 5A; 30V.DC,5A | |

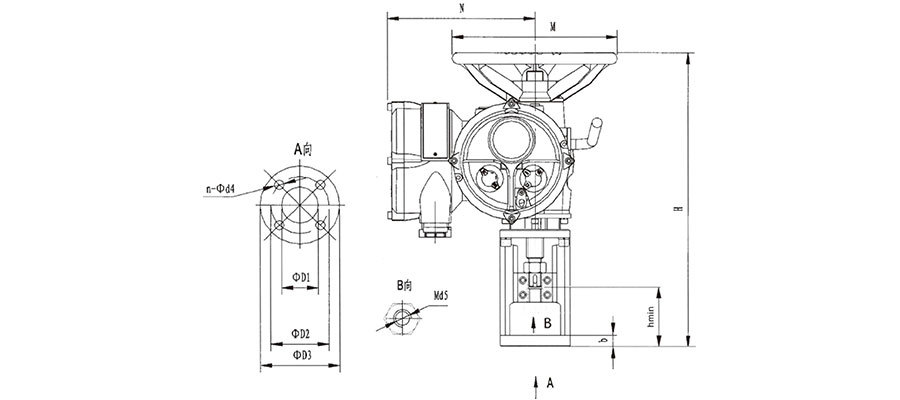

Installation Dimensions
| Electric actuator model | N | M | H | b | ФD1 | ФD2 | ФD3 | N-Фd4 | Md5 | Itinerary | hmin |
| IKML10 | 265 | 300 | 660 | 22 | 60 | 80 | 140 | 2-Ф10 | M8 | 10 | 86 |
| 16 | 79 | ||||||||||
| 25 | 74 | ||||||||||
| IKML12 | 265 | 300 | 660 | 22 | 80 | 105 | 140 | 4-Ф12 | M12×1.25 | 40 | 105 |
| 4-Ф14 | M16×1.5 | 60 | 114 | ||||||||
| IKML20 | 280 | 508 | 720 | 30 | 95 | 118 | 200 | 4-Ф12 | M12×1.25 | 40 | 105 |
| 4-Ф14 | M16×1.5 | 60 | 114 | ||||||||
| 4-Ф18 | M20×1.5 | 100 | 95 | ||||||||
| IKML25 | 280 | 508 | 720 | 30 | 100 | 130 | 200 | 4-Ф14 | M16×1.5 | 60 | 114 |
| 4-Ф18 | M20×1.5 | 100 | 95 |
