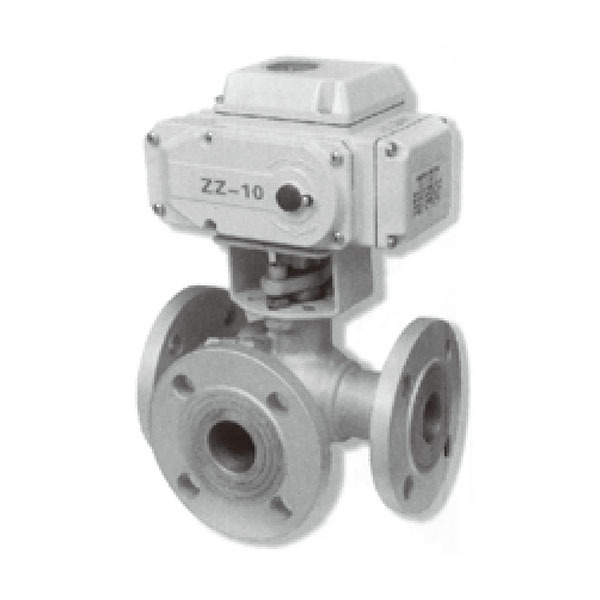

Electric Three-way Ball Valve

By changing the relative Angle of the ball core and the pipeline, the three-way ball valve can realize different combination control of the three pipeline fluids.

Category：

Ball Valve Series

Keywords：

Ball Valve Series

admin@jnwsjxzz.com

E-mail

+8613869176503

Technical Parameters

Nominal diameter (mm)	Full bore type	20	25	40	50	65	80	100	125	150	200
Nominal diameter (mm)	Reduced diameter type	-	-	-	-	-	-	125	150	200
Nominal pressure		1.6, 2.5, 4.0Mpa
Electric actuators can be equipped		Equipped with Q-type, QH-type, YB-type and other series of electronic electric actuators
Flange standard		Comply with JB78-59, JB79-59 standards, JB/T79.1-94, JB/79.2-94, HG20592-2009, ANSI, JIS, DIN and other standards Order production

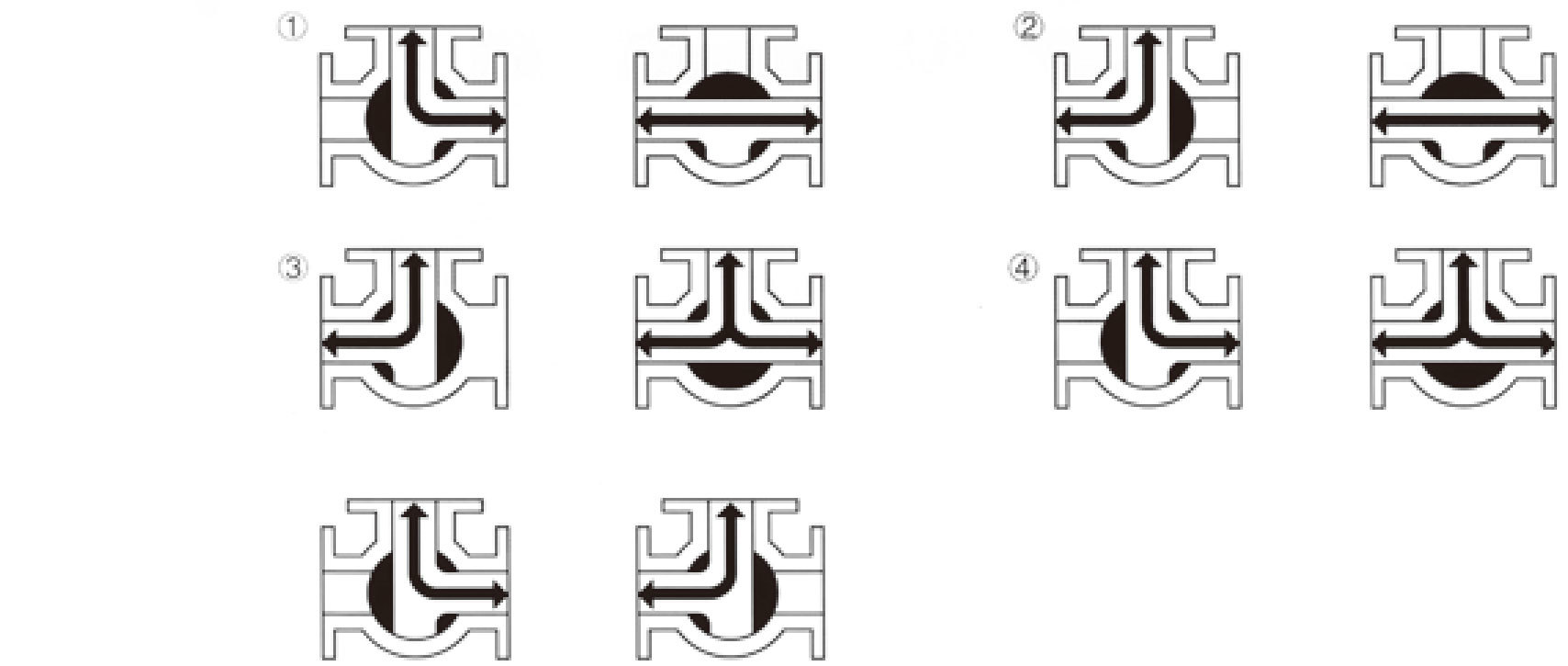

Channel Form

Features

Valve body material	Cast steel (ZG230-450), stainless steel (ZG1Cr18Ni9Ti, 316, 316L), etc.
Ball material	Stainless steel (ZG1Cr18Ni9Ti, 316, 316L), etc.
Stem material	Stainless steel (1Cr18Ni9Ti, 316, 316L), etc.
Packing material	PTFE
Sealing material	Soft seal		Hard seal
Valve seat material	PTFE	Carbon fiber reinforced PTFE	Stainless steel or stainless steel + STL
Leakage rate	VI level, less than 10-7, 10-6 of rated flow		VI level, less than 10-4 of rated flow
Operating temperature	-20~150℃	-20~180℃	-20~250℃

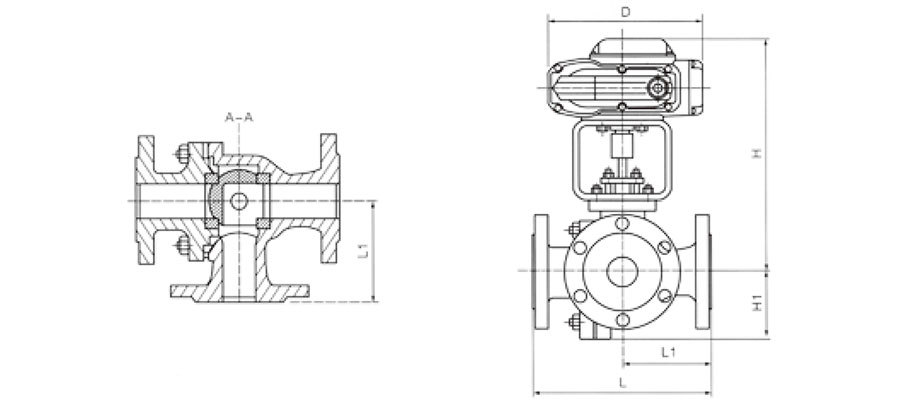

Dimensions

Two-body pose

Nominal diameter (mm)		20	25	40	50	65	80	100	125	150	200
L(mm)		150	160	210	220	250	260	330	430	510	580
H1(mm)		55	60	75	85	95	105	115	140	160	210
With Q type	H(mm)	309	321	340	370	410	468	555	717	771	774
With Q type	D(mm)	222		294	300		380		450	603	683
With YB type	H(mm)	280	305	330	340	410	460	535	670	690	750
With YB type	D(mm)	157	207			256			380

Three-body pose

Nominal diameter (mm)		20	25	40	50	65	80	100	125	150	200
L(mm)		260	260	340	400	500	500	600	640	680	750
H1(mm)		55	60	75	85	95	105	115	140	160	210
With Q type	H(mm)	309	321	340	370	410	468	555	717	771	774
With Q type	D(mm)	222		294	300		380		450	603	683
With YB type	H(mm)	280	305	330	340	410	460	535	670	690	750
With YB type	D(mm)	157	207			256			380
