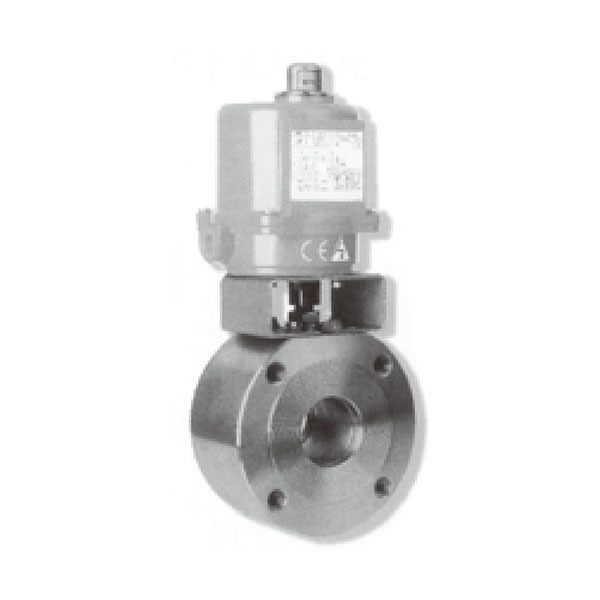

Electric Thin Ball Valve

This series of thin ball valve is an ultra-short flanged ball valve produced by foreign advanced technology.

Category：

Ball Valve Series

Keywords：

Ball Valve Series

admin@jnwsjxzz.com

E-mail

+8613869176503

Technical Parameters

Nominal diameter (mm)		15	20	25	32	40	50	65	80	100	125	150	200
Measurement coefficient kv	V type	6.4	9.9	15	24	33	52	84	99	133	200	341	510
	Rectangle	7.4	11.5	17	28	38	60	98	115	160	232	396	590
Rated stroke		90℃
Nominal pressure		1.6, 4.0Mpa
Flow characteristics		V-type: Approximately equal percentage
Adjustable range		100:1, 200:1
Equipped with electric actuators		Equipped with Q-type, QH-type, YB-type and other series of electronic electric actuators
Action form		Electric: electric open, electric close
Flange standard		JB78-59, JB79-59, JB/T79.1-94, JB/79.2-94, HG20592-2009, ANSI, JIS, DIN and other standards

Features

Body material	Cast steel (ZG230-450), stainless steel (ZG1Cr18Ni9Ti, 316, 316L), etc.
Ball material	Stainless steel (ZG1Cr18Ni9Ti, 316, 316L), etc.
Stem material	Stainless steel (1Cr18Ni9Ti, 316, 316L), etc.
Packing material	PTFE, flexible graphite
Sealing material	Soft seal		Hard seal
Valve seat material	PTFE	Carbon fiber reinforced PTFE	Stainless steel or stainless steel + STL
Leakage rate	VI level		Less than 10-4, 10-3 of rated flow
Operating temperature	-40~180℃	-40~200℃	-40~350℃

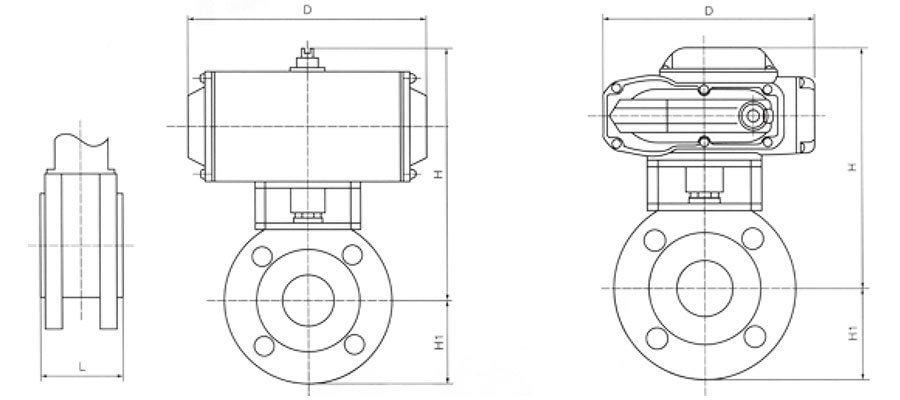

Dimensions

Nominal diameter (mm)			15	20	25	32	40	50	65	80	100	125	150	200
L(mm)			32	38	44	54	62	72	95	120	140	200	225	250
H1(mm)			48	53	58	68	70	80	90	93	108	123	140	170
With Q type	H (mm)	Normal temperature	226	234	253	260	279	289	348	376	446	469	525	560
	H (mm)	Medium temperature	383	391	410	417	436	444	530	558	628	671	707	740
	D(mm)		203		222		294		300			380
	Weight (kg)		6	7.5	8	9	10	12	18	24	26	59	65	74
With YB type	H (mm)	Normal temperature	216	224	235	242	252	260	318	346	356	366	380	430
	H (mm)	Medium temperature	373	381	392	399	409	417	500	528	538	548	572	600
	D(mm)		157				208
	Weight (kg)		6	7.5	8	8.5	9	10	18	22	27	35	42	49
