Electric Fluorine Lined Ball Valve
Category：
Ball Valve Series
Keywords：
Ball Valve Series
Product Details
This series of water treatment ball valve can also be called (corrosion resistant ball valve), which is the polytetrafluoroethylene propylene plastic through professional technology lined in the body cavity parts surface, to ensure that the contact with the medium are fluorine plastic. At the same time, the direct way is connected with the actuator, which has the advantages of compact structure, small size, light weight, small resistance, small return difference, stable and reliable action, and good turbidity resistance. The product is suitable for the regulation of clean and strong corrosive media (including concentrated nitric acid and aqua regia). The actuator can be configured according to user requirements.
Technical Parameters
| Nominal diameter (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Measurement coefficient kv(V type) | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 |
| Rated stroke | 90℃ | |||||||||||
| Nominal pressure | 1.0, 1.6Mpa | |||||||||||
| Flow characteristics | V-type: approximately equal percentage; O-type: fast opening | |||||||||||
| Adjustable range | V-type: 100:1 | |||||||||||
| Electric actuator available | Equipped with Q-type, QH-type, YB-type and other series of electronic electric actuators | |||||||||||
| Action form | Electric: electric open, electric close | |||||||||||
| Flange standard | Comply with JB78-59, JB79-59 standards, JB/T79.1-94, JB/79.2-94, HG20592-2009, ANSI, JIS, DIN and other standards for order production | |||||||||||
Features
| Valve body material | ZG230-450+F46 | ZG1Cr18Ni9Ti+F46 |
| Ball material | ZG1Cr18Ni9Ti+F46 | |
| Stem material | 1Cr18Ni9Ti+F46 | |
| Packing material | PTFE | |
| Sealing material | Soft seal | |
| Valve seat material | PTFE | |
| Leakage rate | VI level, zero leakage | |
| Operating temperature | -5~200℃ | -20~200℃ |

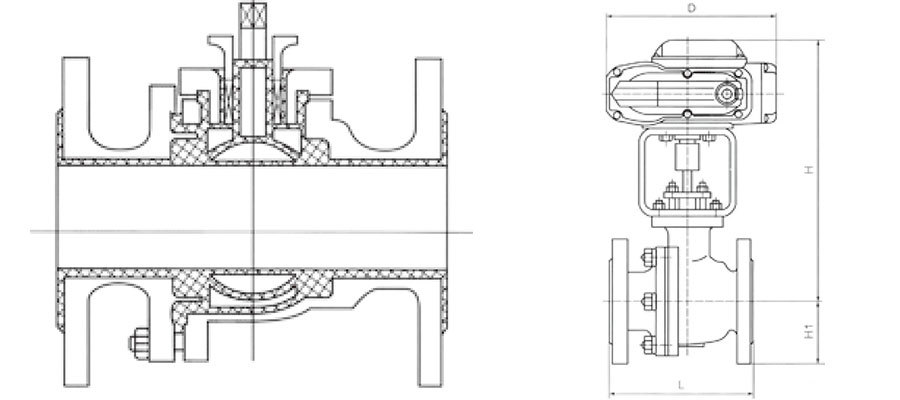

| Nominal diameter (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| L(mm) | PN1.6Mpa | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 280 | 320 | 360 | 400 | 450 | 520 |
| H1(mm) | 50 | 55 | 60 | 70 | 75 | 85 | 95 | 105 | 115 | 125 | 140 | 170 | 205 | 230 | |
| With Q type | H(mm) | 306 | 308 | 320 | 350 | 370 | 380 | 410 | 420 | 555 | 660 | 724 | 774 | 885 | 950 |
| D(mm) | 222 | 294 | 300 | 380 | 450 | 603 | 683 | 720 | |||||||
| With YB type | H(mm) | 275 | 280 | 290 | 330 | 340 | 400 | 460 | 535 | 640 | 690 | 750 | 795 | 840 | |
| D(mm) | 157 | 207 | 256 | 380 | 420 | ||||||||||
