Electric Baffle Butterfly Valve

This series of flapper butterfly valve is a new type of control valve developed for medium and high temperature cut-off valve

Category：

Butterfly Valve Series

Keywords：

Butterfly Valve Series

admin@jnwsjxzz.com

E-mail

+8613869176503

Technical Parameters

Nominal diameter (mm)		150	200	250	300	350	400	450	500	600	700	800	900	1000	1200	1400	1500
Flow coefficient kv	90°	725	1290	2190	3350	4270	6350	7810	9870	14600	20500	27400	35900	42000	62600	82600	98700
Flow coefficient kv	60°	370	645	1180	1700	2030	3090	3820	4720	7120	9700	12500	16300	20000	28800	39600	44900
Rated stroke		Adjustable type: 60°; two-position type: 90°
Flow characteristics		Approximate equal percentage
Nominal pressure		Standard products 0.6, 1.0, 1.6Mpa
Adjustable range		60°15:1; 90°30:1
Equipped with electric actuators		Equipped with Q-type, QH-type, YB-type and other series of electronic electric actuators
Action form		Electric: electric open, electric close
Flange standard		The clamp connection complies with JB78-59 and JB79-59 standards, and can be ordered and produced according to JB-T79.1-94, JB/T9.2-94, HG20592-2009, ANSL, JIS, DIN and other standards

Features

Valve body material		Cast steel (ZG230-450), stainless steel (ZG1Cr18Ni9Ti, 316, 316L), etc.
Valve plate material		Stainless steel (ZG1Cr18Ni9Ti, 316, 316L), etc.
Packing material		PTFE, flexible graphite
Sealing material		Soft seal			Hard seal
Valve seat material		Nitrile rubber	Polytetrafluoroethylene	Carbon fiber reinforced polytetrafluoroethylene	Stainless steel or stainless steel + STL
Leakage rate		VI level (10-3)			VI level, less than 10-4 of rated flow
Working Temperature	Rust-cast valve body	-5~80℃	-5~180℃	-5~220℃	-5~400℃	High temperature resistant alloy up to 1000℃
	Stainless steel valve body	-20~80℃	-20~180℃	-20~200℃	-20~600℃

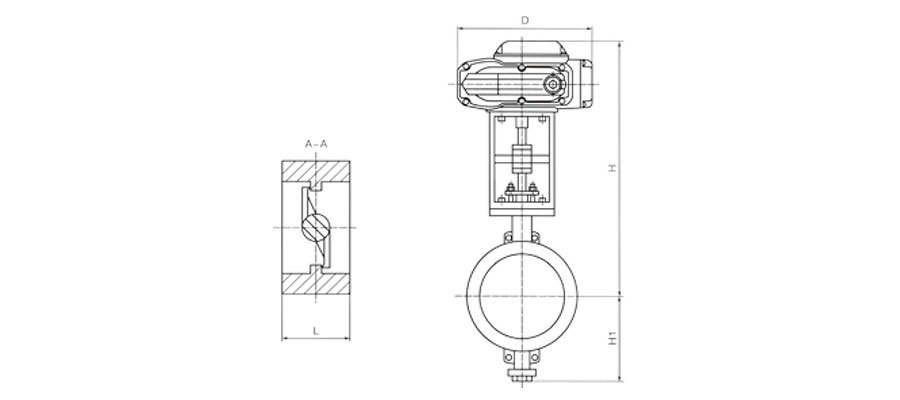

Dimensions

Nominal diameter (mm)			150	200	250	300	350	400	450	500	600	700	800	900	1000	1200	1400	1500
L(mm)			70	70	80	80	100		150		200		300		400		500
H1(mm)			150	180	210	230	260	290	320	350	400	455	510	560	625	735	845	900
With Q type	H (mm)	Normal pad	480	520	550	608	775	835	960	990	1070	1185	1240	1290	1425	1475	1615	1730
	H (mm)	Heat sink pad	580	620	750	708	875	935	1060	1090	1190	1305	1390	1440	1575	1640	1780	1920
	D(mm)		210	230	280	300	450			630		720	840
With YB type	H (mm)	Normal pad	450	480	520	551	631	691	781	840	920	975	1030	1080	1215	1155	1295	1420
	H (mm)	Heat sink pad	550	580	620	651	731	791	881	960	1040	1095	1180	1230	1365	1420	1460	1580
	D(mm)		256								380
